20PCS/Pack RC Model Aircraft Micro Multi-use Hinge HY008-012 White Plastic Pinned Hinges For RC Glider Fixed Wing Airplane DIY Accessories

Product Introduction

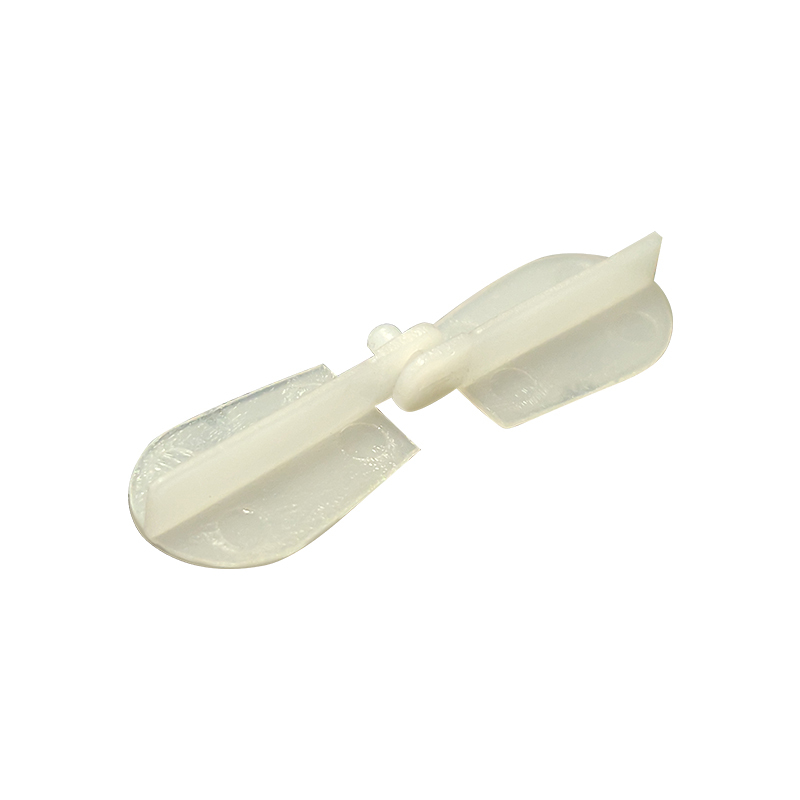

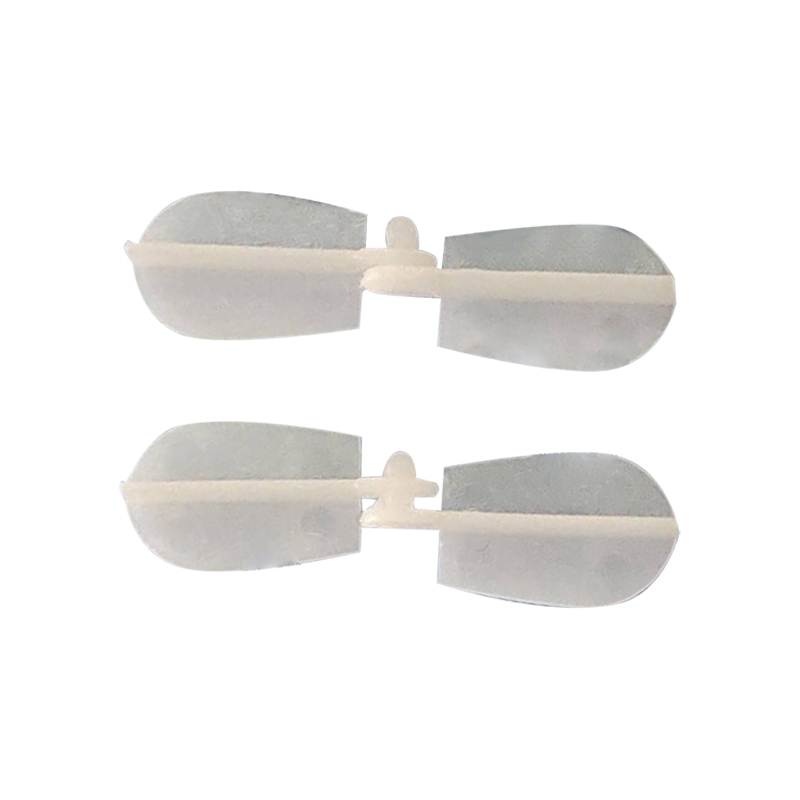

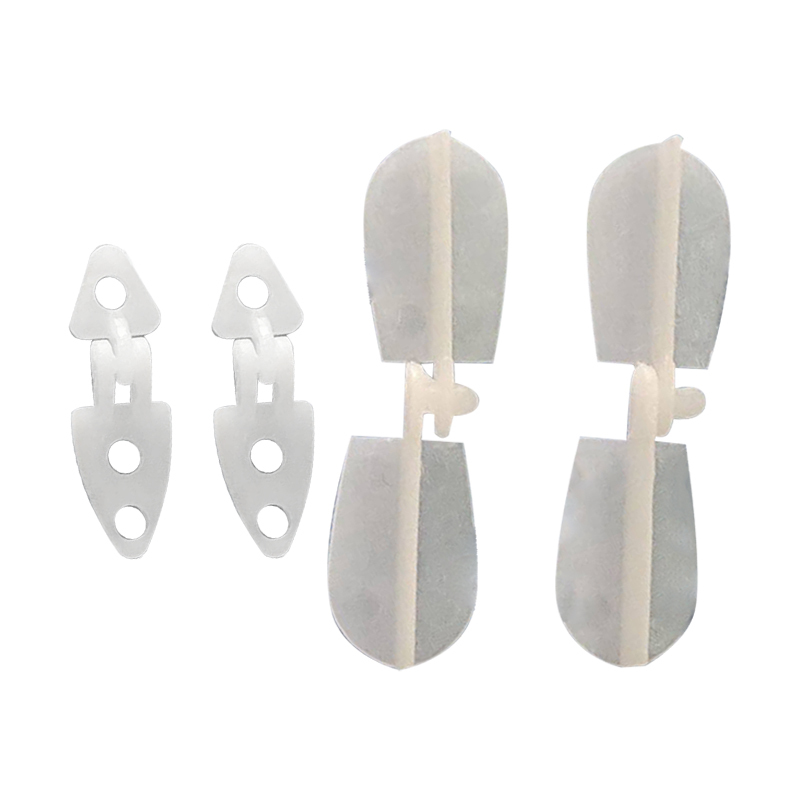

• Model: 008-01201 | Dimension: L27×W7×H3 mm

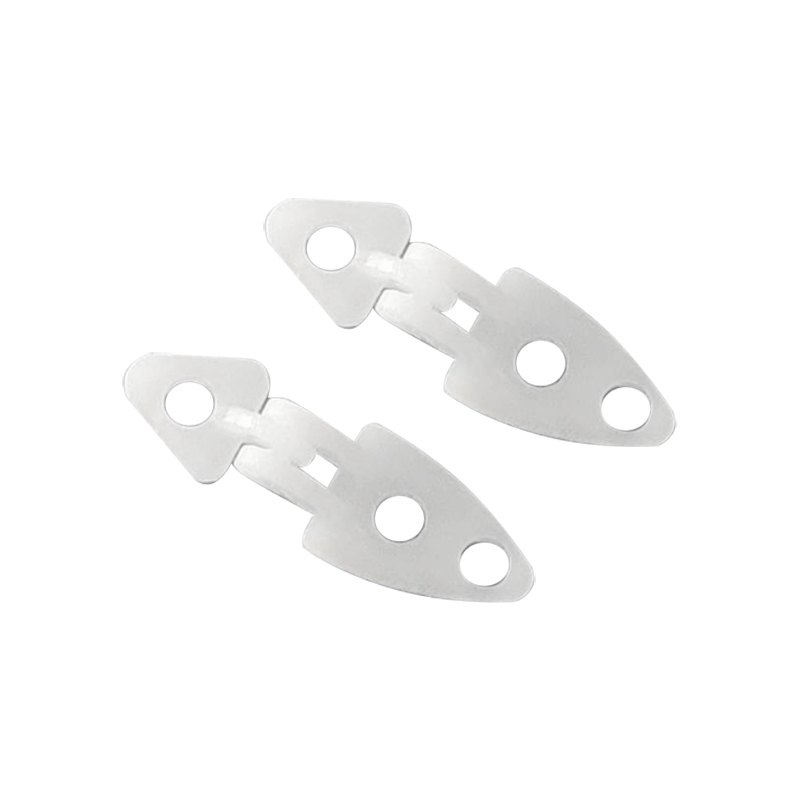

• Model: 008-01202 | Dimension: L19×W6×H3 mm

Installation Instruction

1. Pre-make matching grooves on fuselage, wing and control surface according to hinge size.
2. Put the hinge into reserved slot, apply model glue evenly on both side plates of hinge.
3. Keep the hinge aligned, maintain position until adhesive fully cured.
4. Check the swing range of control surface; ensure the hinge rotates freely without binding.
5. Complete linkage assembly and test the deflection before formal flight.

Warm Notice

• Small model accessory, not suitable for children under 14 years old.
• Avoid high temperature environment to prevent plastic deformation.
• Suitable for RC glider, KT foam plane, balsa wood fixed wing models.
